Complete HI Dop Vascular Doppler Set with 4, 5 and 8MHz probes
Ref: HDV01
£0.00
£0.00

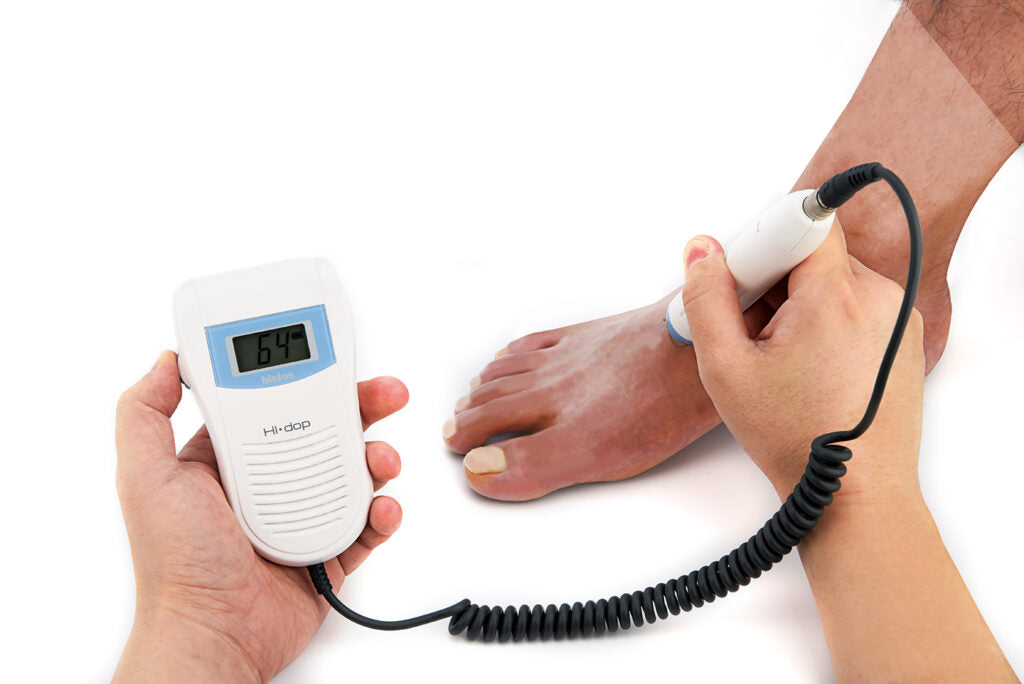

The HI-Dop pocket vascular doppler is an effective non-directional hand held doppler for non-invasive vascular assessment.
The HI-Dop Vascular Doppler is intended primarily for assessing vascular disease. Standard probes are 4, 5, 8 MHz.
Applications for this Pocket Vascular Doppler include Ankle Pressure Index, Venous Flow Screening, Leg Ulcer Management, Segmental Pressure Studies, Blood Flow Wave Form Recording and Arterial Flow Screening.
The HI-Dop vascular Doppler comes complete with ultrasound gel, soft carry case, manual and choice probes.
Features:
· 4, 5 & 8 MHz Ultrasound Probes
· Built-in speaker
· LCD Display
· Compact and Light
· High-Sensitivity Doppler probe
· Ergonomic Design
· Clean Sound
· Easy to Use
· Low power consumption
· Long period of continuous use (6 hours)
· 2 year warranty
Technical Specification
Display
· LCS
· Low Battery Display
· Signal Quality Display
· Heart Rate Range: 50 - 240 b.p.m.
· Accuracy: ±2%
Ultrasound Frequency: 4 / 5 / 8 Mhz
Ultrasound Intensity: <10mW/cm²
Speaker Output Power: 1.2W (Built-in Loudspeaker)
Audio output for earphone
Auto Shut-off: 5 minutes
Auto Shut-off on ultrasound signal : 1minute
Power: 1.5V Battery X 2 (Type: AA)
PC Audio Interface: Standard Sound Card (Not included)
Battery Life: 360 minutes
Accessories
· Carring Case
· Battery (1.5V AA X 2)
· Gel
Standards:
· CE Certified, EN ISO 13485:2003 compliant
· Conforms to UK and EC Medical Safety Requirements (Medical Directive 93/42/EEC)
· CE 0470
Display
· LCS
· Low Battery Display
· Signal Quality Display
· Heart Rate Range: 50 - 240 b.p.m.
· Accuracy: ±2%
Ultrasound Frequency: 4 / 5 / 8 Mhz
Ultrasound Intensity: <10mW/cm²
Speaker Output Power: 1.2W (Built-in Loudspeaker)
Audio output for earphone
Auto Shut-off: 5 minutes
Auto Shut-off on ultrasound signal : 1minute
Power: 1.5V Battery X 2 (Type: AA)
PC Audio Interface: Standard Sound Card (Not included)
Battery Life: 360 minutes
Accessories
· Carring Case
· Battery (1.5V AA X 2)
· Gel
Standards:
· CE Certified, EN ISO 13485:2003 compliant
· Conforms to UK and EC Medical Safety Requirements (Medical Directive 93/42/EEC)
· CE 0470
